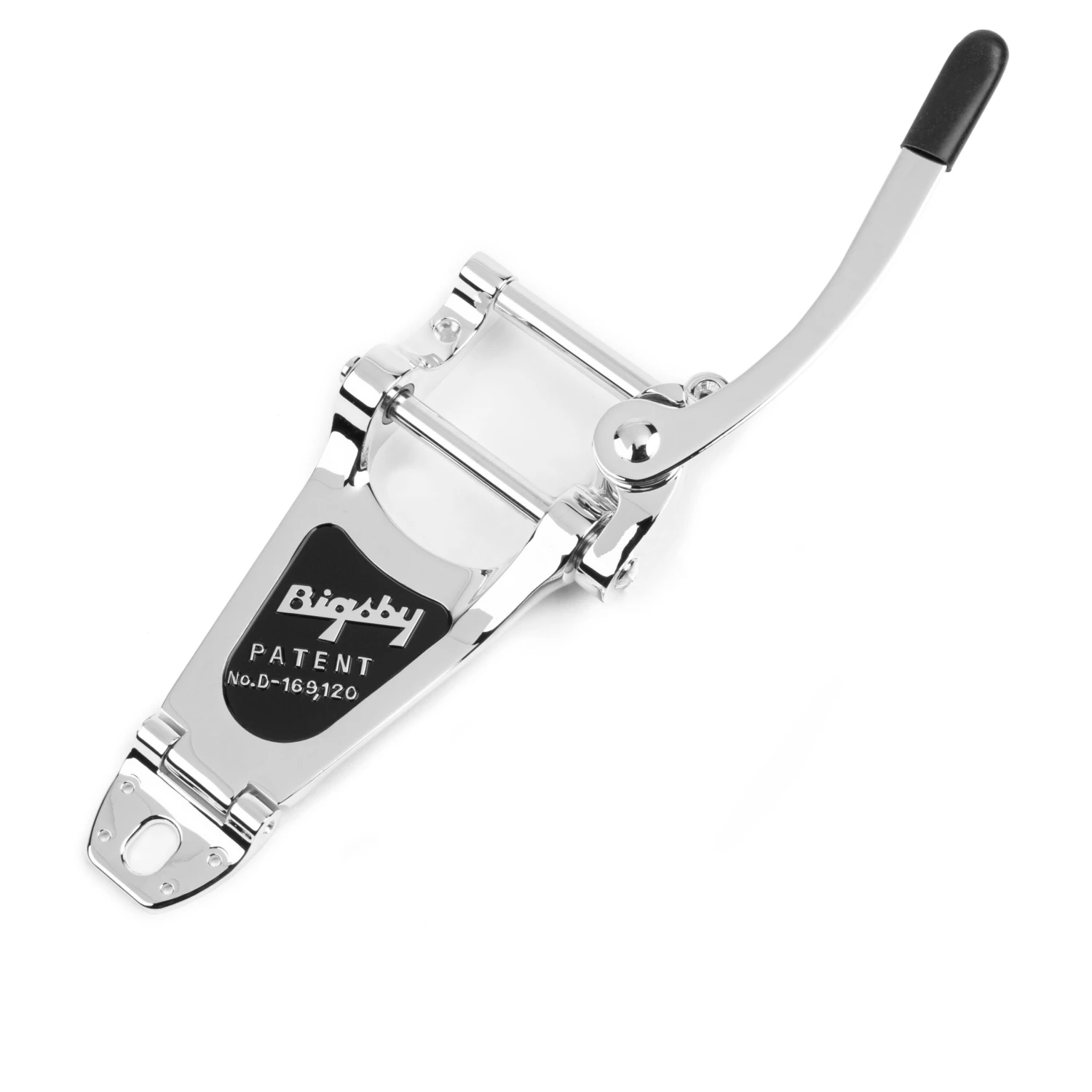

Bigsby B7 Vibrato

The original vibrato! The legendary Bigsby vibrato features a string mounting bar floating on low-friction needle bearings, for accurate return to pitch.

Each model has a cast aluminum frame and stainless steel arm.

Bigsby model B7: With string tension bar, for thin (1-1/2″ to 2-1/4″) archtops, or for carved-top solidbodies including Les Pauls. Mounts with six supplied screws; two attach to the guitar top.

Specifications:
Upper mounting screw spread: 1-5/16″
Lower mounting screw spread: 15/16″
Strap button slot: 1/2″ x 5/8″
Center of hinge to string tension bar: 7″

Install a Bigsby B7 on your Les Paul without drilling!
The Vibramate V7-LP Adapter uses your guitar’s stop tailpiece bushings for easy, secure Bigsby installation with just a screwdriver. It works with U.S. or metric stop tailpiece bushings that have standard 3-1/4″ (82.55mm) non-staggered spacing, and fits carved-top Les Pauls. A brillliant solution!

SAVE when you order your Bigsby with a Vibramate to fit your Les Paul!

Les Paul® is a registered trademark of Gibson Guitar Corporation.
