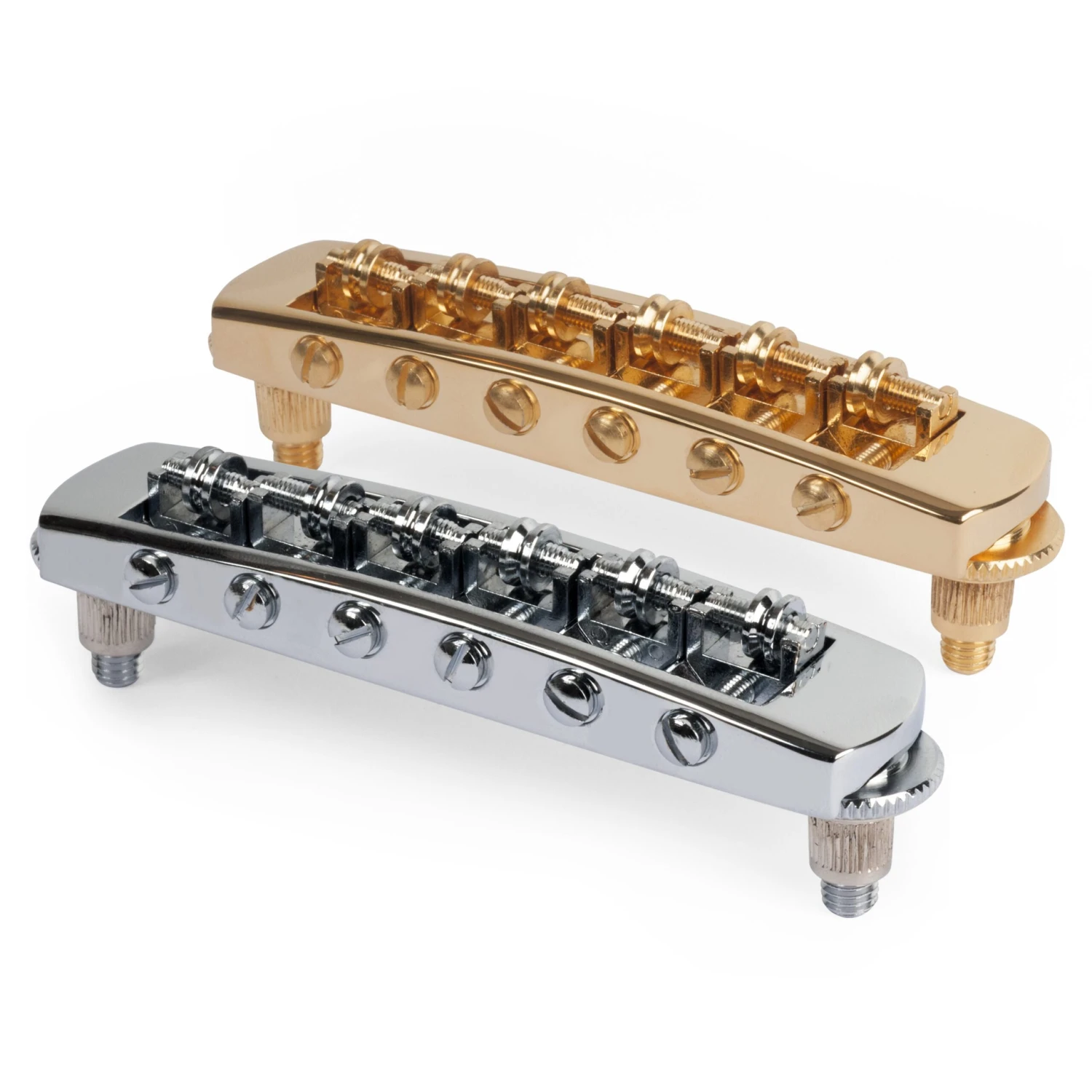

Schaller Roller Bridge
A direct replacement for most Tune-o-matic style bridges!
Schaller’s unique variation of the Tune-o-matic bridge features low-friction roller saddles for smoother tuning and tremolo action.
These intonation-adjustable brass saddles allow adjustable string spread, and are angled slightly for correct alignment with the offset mounting studs and threaded bushings. The bridge can be used with standard Gibson® guitar tailpieces.
| Adjustable string spread 1-29/32″ to 2-1/4″ (48.42mm to 57.15mm) |
 |
Saddle radius 14″ (355.60mm) |
 |
Post spacing 2-29/32″ (73.82mm) |
 |
Stud threads M5 x .8 |
Use a 1/4″ drill bit to install the bushings.
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 1266
- 0.1624 lbs. (0.07 kg)
-
- 1266-G
- 0.1624 lbs. (0.07 kg)
